Solos Solar Array production stats – April 2025

32 comments

solominer2 K3 days agoPeakD2 min read

For the month of April we produced over 1.38 MWh (Megawatt hours). We made a little less this month compared to the last, may be in part of cloudy skies. Though I expect the wattage to pick up more during the summer time in the next month or two.

Array A production stats:

PV: 336.9 kWh
Load: 2719.7 kWh
Grid Import: 2501.8 kWh
Battery Charge: 121.2 kWh
Battery Discharge: 101.9 kWh

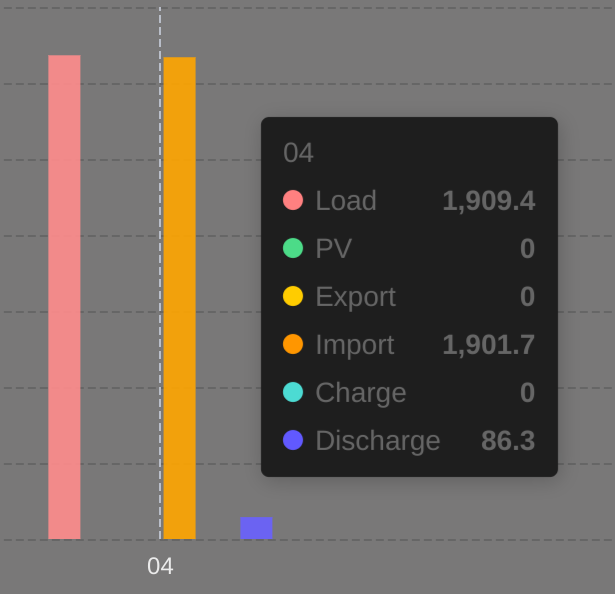

*combined stats are different from screenshot from single inverter.

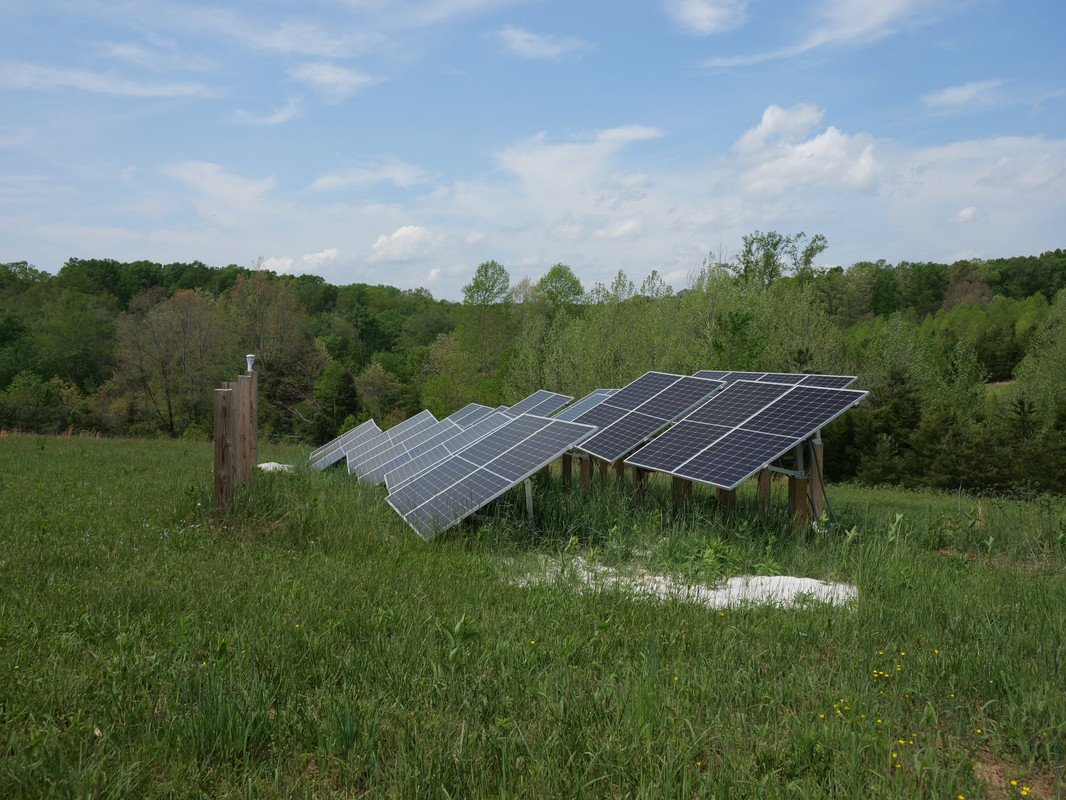

Array A build:

System Size = 5.5 kWp DC
Panels = Sungoldpower Monocryalline 60 cell (12 Panels, 450 Watts each)
Mounting System = Brightmount EG4 screwed into 6x6 timbers
Wiring: 1x 8 AWG 19 strand PV direct bury wire pair
Inverters = 2x Sol-Ark 15k all-in-ones (240V)

Battery Backup = 48 3.2v EVE LF280 LiFePO4 280AH batteries
Battery Management system = Daly Smart BMS 16S 48V 500A
Battery Capacity = 45.696 kWh (840AH)

Propane Generator = Briggs and Stratton Power Protect 26kw

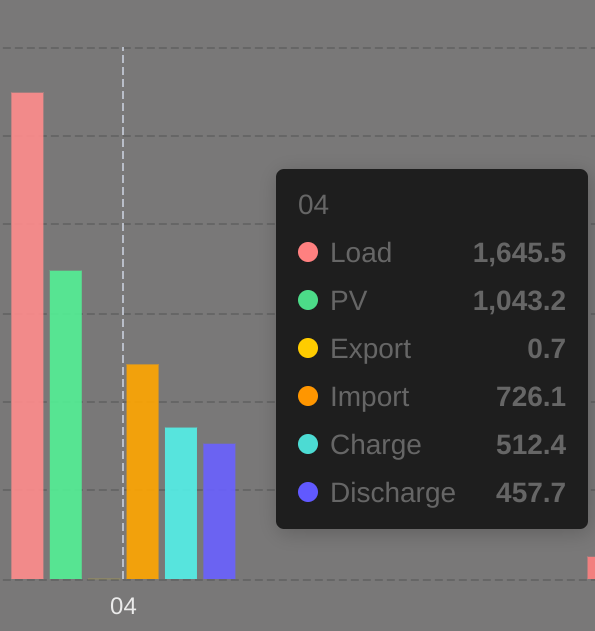

Array B production stats:

PV: 1043.2 kWh
Load: 1645.5 kWh
Grid Import: 726.1 kWh
Battery Charge: 512.4 kWh
Battery Discharge: 457.7 kWh

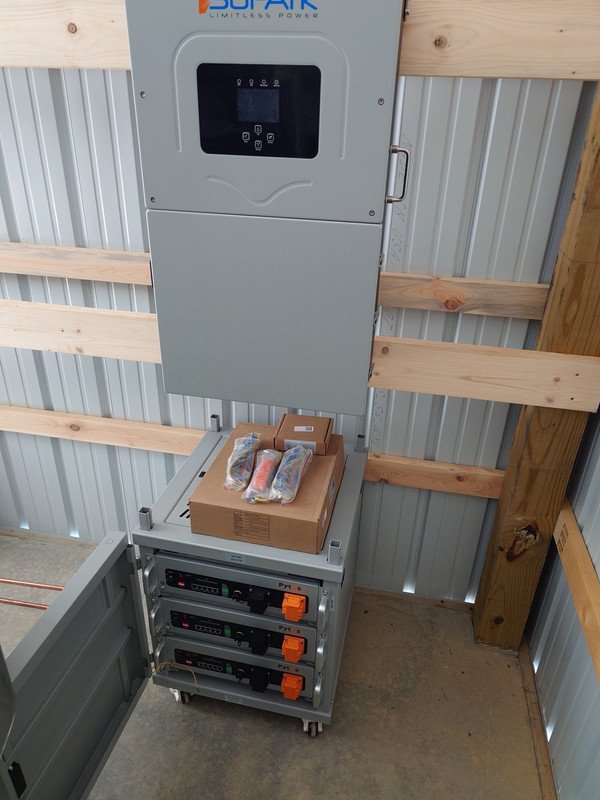

Array B build:

System Size = 9 kWp DC
Panels = Sungoldpower Monocryalline 60 cell (20 Panels, 450 Watts each)
Mounting System = Brightmount EG4 screwed into 6x6 timbers
Wiring: 2x 8 AWG 19 strand PV direct bury wire pair
Inverters = Sol-Ark 15k all-in-one (240V)

Battery Backup = 48 3.2v LiFePO4 290AH batteries (unknown brand)
Battery Management system = Daly Smart BMS 16S 48V 250A
Battery Capacity = 47.328 kWh (870AH)

Propane Generator = Briggs and Stratton Power Protect 22kw

Totals combined for all arrays:

1380.1 kWh (1.38 MWh) produced for the month of April

Extra information: Major progress has been made on Array-C. I expect it to be online in the next few weeks bringing over another 9000 watts onto the farm in production.
