SPS Validator Node: Setup Guide for Dummies on Windows

Hi!
I've created this guide for those who want to run a Validator node on a Windows PC without buying a server. If anything is unclear, doesn't work, or have any questions, feel free to leave a comment! I'll be happy to help.

Preparing

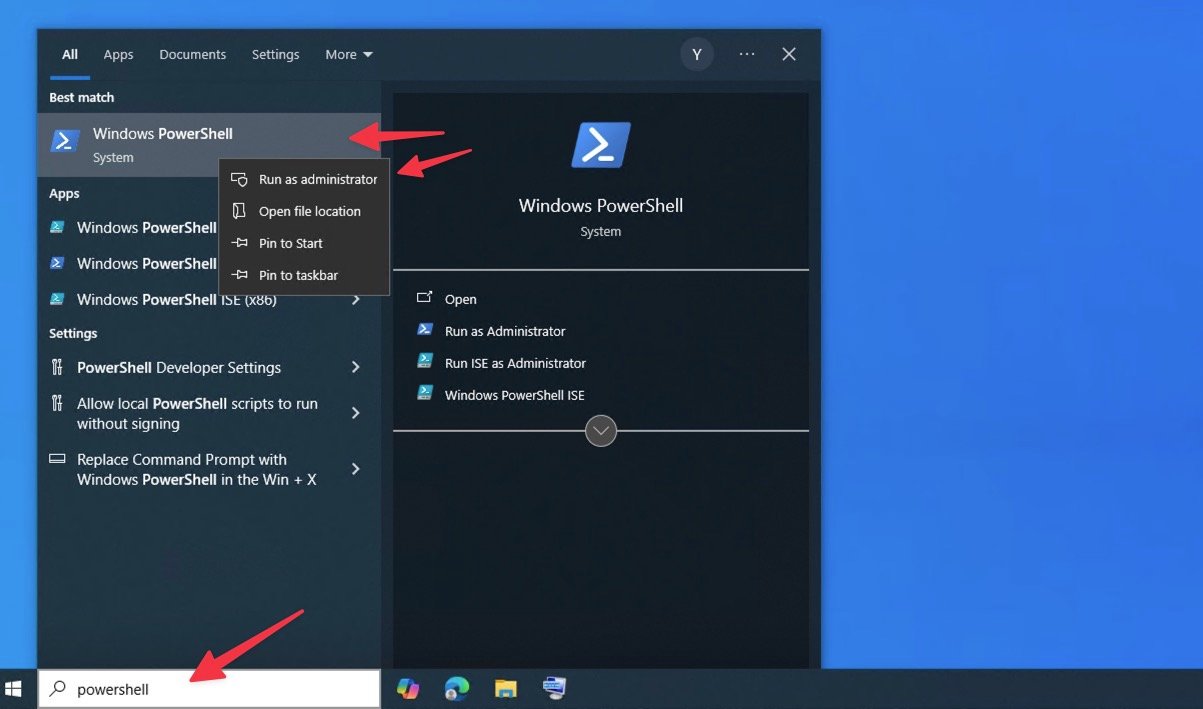

Type ‘powershell’ on windows search bar
Run ‘Windows PowerShell’ as administrator

run

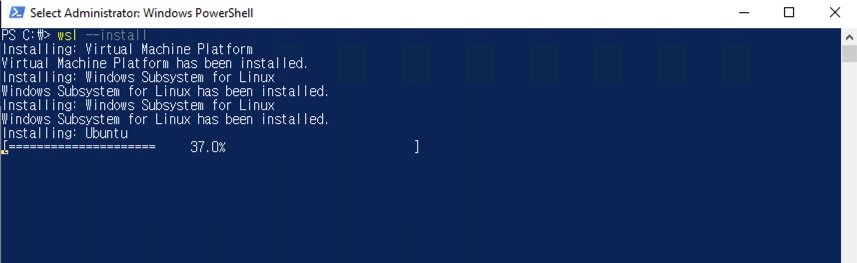

wsl --install

This will install ubuntu by default
Restart your computer after installation

Install Docker Desktop

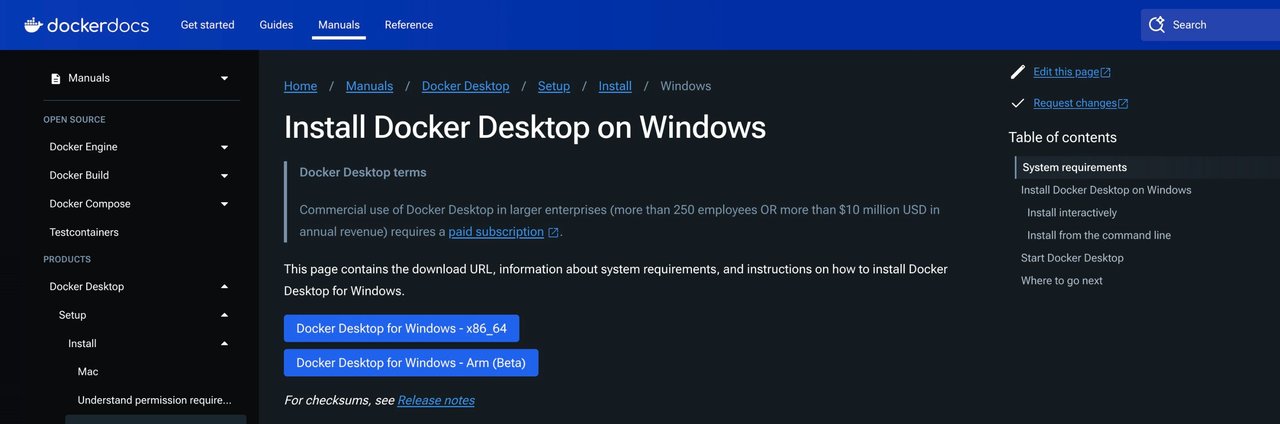

Download and install Docker Desktop from
https://docs.docker.com/desktop/setup/install/windows-install/

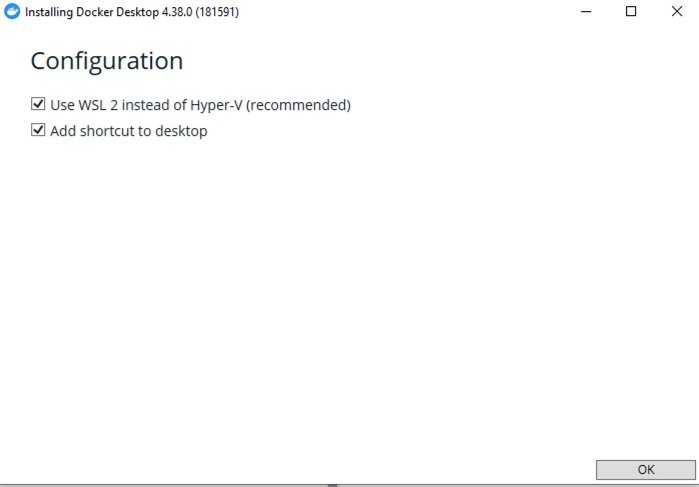

During installation, ensure the "Use WSL 2 instead of Hyper-V" option is selected

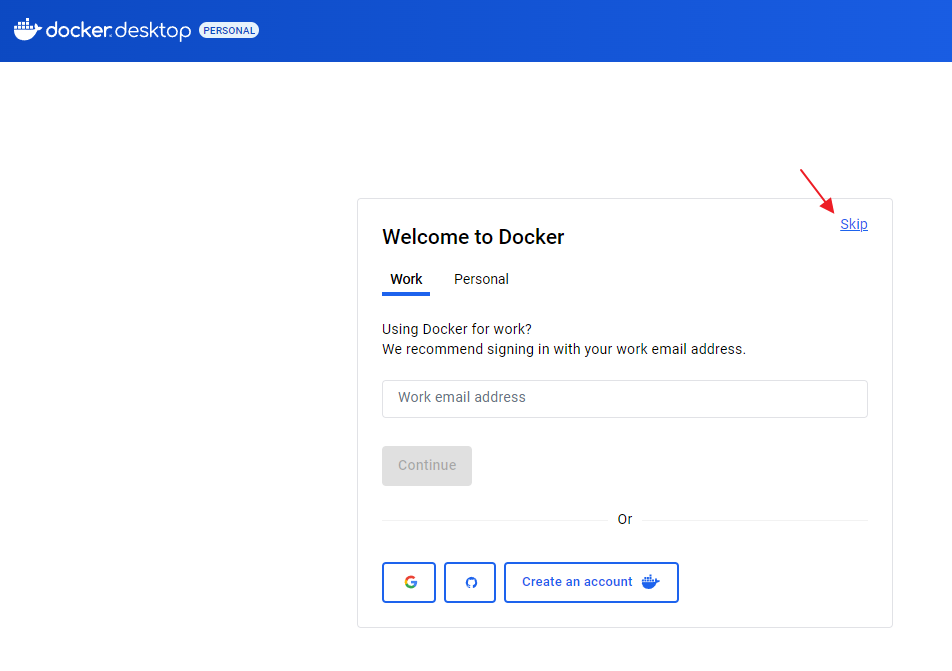

After installation, open Docker Desktop , Click Skip so you don’t have sign up docker account

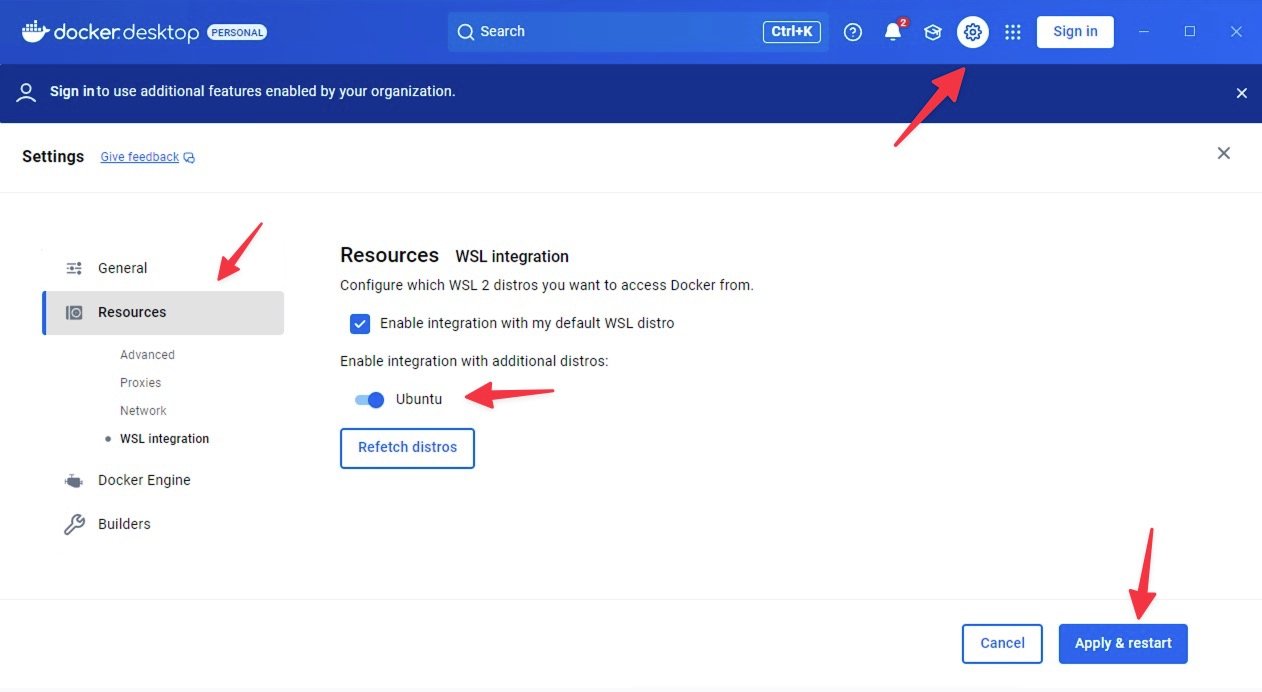

and go to Settings > Resources > WSL Integration
Enable integration with your installed WSL distro - Ubuntu

Setting Up the Validator

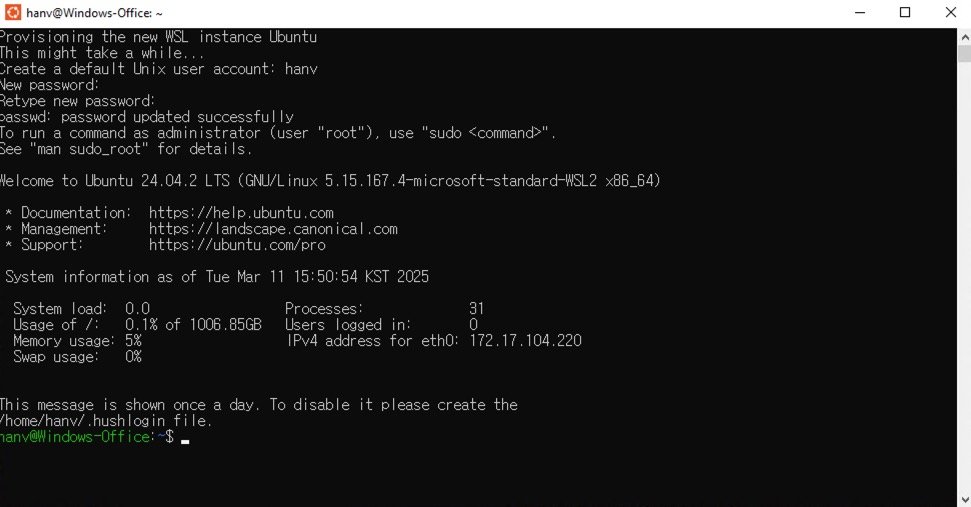

Open your WSL terminal

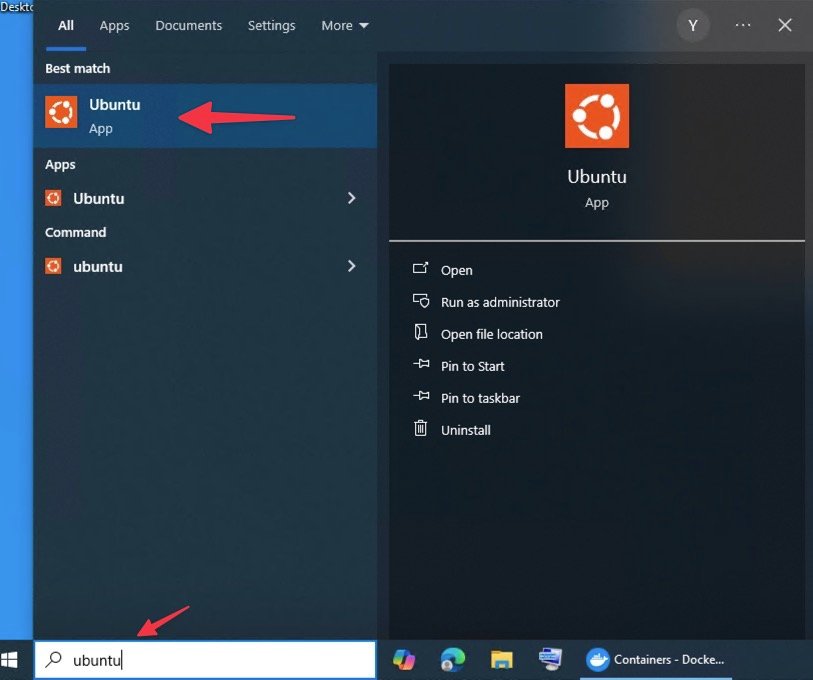

Search for "Ubuntu" in the Start menu and click Ubuntu or run wsl in PowerShell

Get node files

Option 1 (Recommended)

Copy and paste does not work. Be careful the typo and space!

run
bash -c "$(curl -s https://raw.githubusercontent.com/TheSPSDAO/SPS-Validator/refs/tags/vlatest/install.sh)"

You will be asked those questions
Do you want to use a production prefix or qa prefix?
-> type 1
Enter your the hive account name
-> type your hive account
Enter your the hive posting key
-> skip it for now We will put your posting key later. Just enter or type random word like 1111 for now
Do you want to turn on block pruning?
-> type y
Are you sure you want to destory?
-> type y

run
cd SPS-Validator

Option 2 (Skip this if you done with option 1)
run (change the mail with your actual email)
ssh-keygen -t ed25519 -C "[email protected]"

It asks three questions you can just enter three times for the questions.
→ enter → enter → enter

run
cat ~/.ssh/id_ed25519.pub

drag & select the key and copy the key with ctrl+C

Sign up and log in github.com

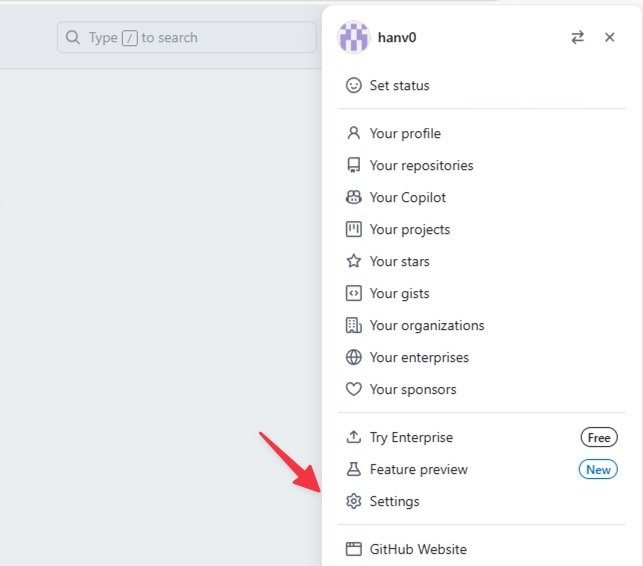

After login github, go setting

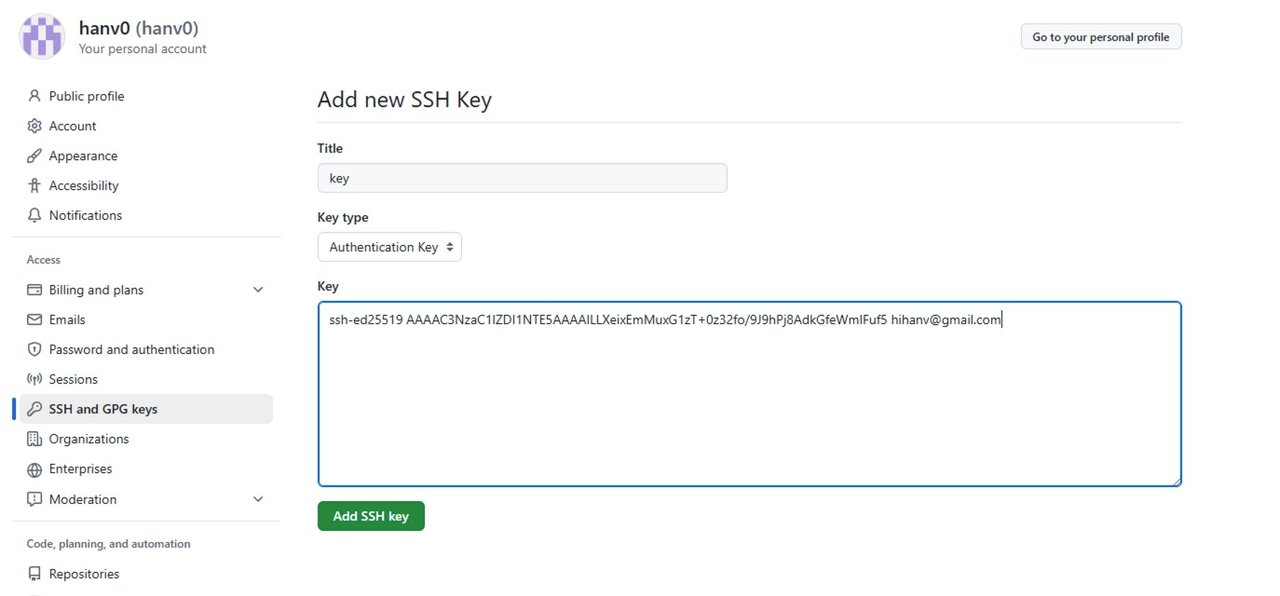

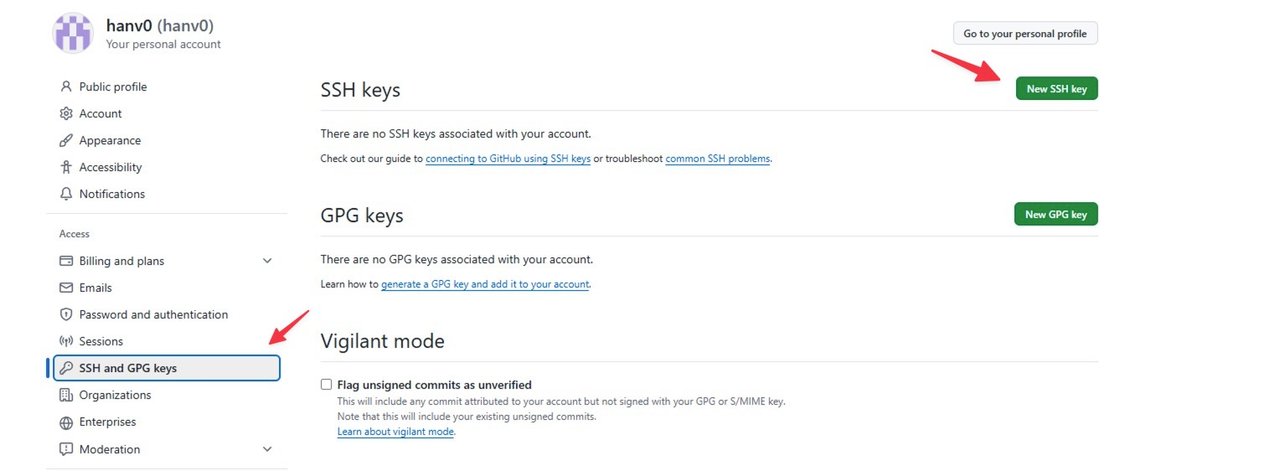

SSH and GPG keys → New SSH key

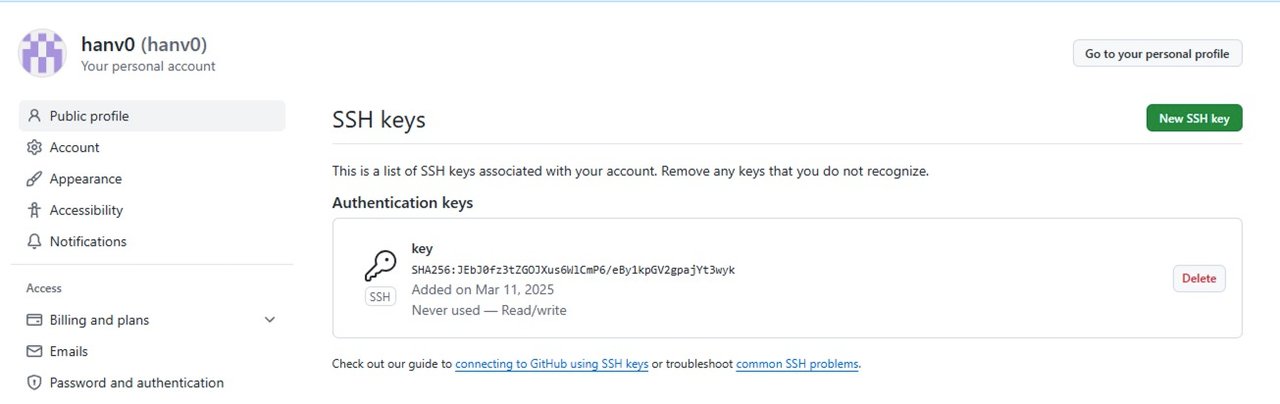

paste the key and add ssh key

run
git clone --branch vlatest --single-branch [email protected]:TheSPSDAO/SPS-Validator.git
yes

run
cd SPS-Validator

'Get node files' part option 1 or option 2 done!

Set up environment variables

Edit the configuration file

run
cp .env-example .env

Use a txt editor to modify the .env file:
run

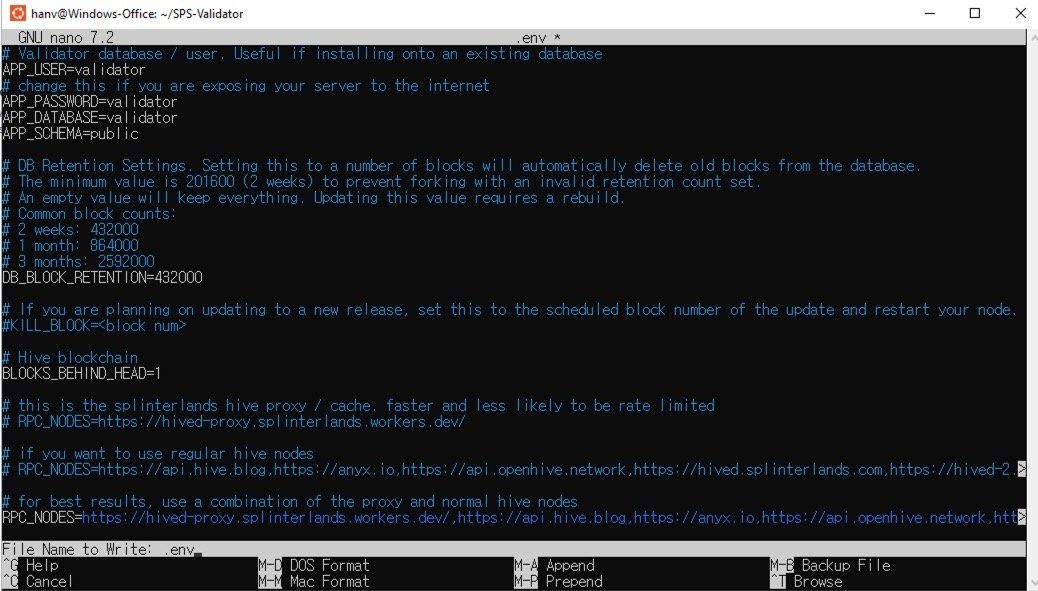

nano .env

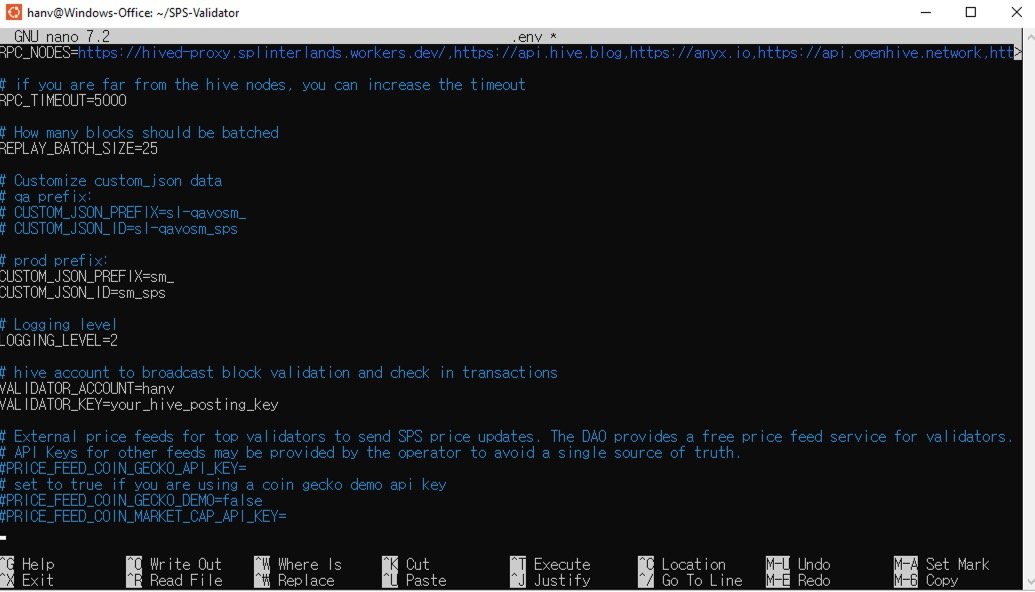

• Important settings to configure:
  • VALIDATOR_ACCOUNT: Your Hive account name
  • VALIDATOR_KEY: Your Hive posting key
  • If you just want license rewards, set DB_BLOCK_RETENTION=432000 to keep your database size small if you’re not aiming Top Validators. Recommend for most people.

save the updated .env file
ctrl + x → y → enter

Build the validator

run

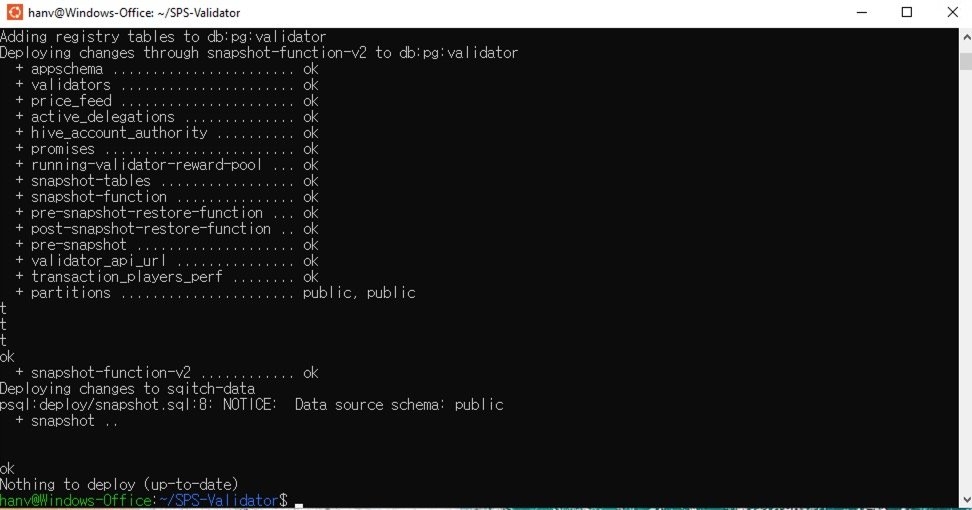

./run.sh build

• This will deploy the database, run migrations, and download/deploy the snapshot
• This process may take some time

Start the validator

run
./run.sh start all

This starts both the validator and the management UI
This process may take some time

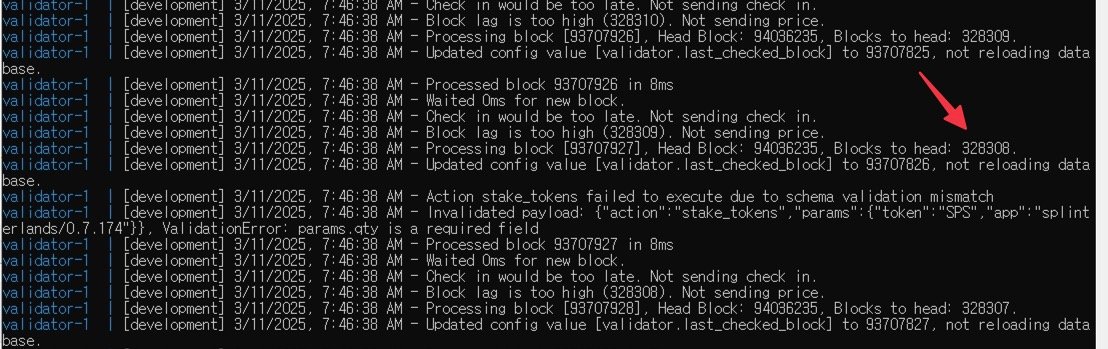

You need to wait this number become 0 to start your node validate block

Congrat! Now your validator node is running!

Register Your Node

Once your node is fully synced (Blocks to head: 0),

Navigate to the management UI at https://localhost:8888/
Go to the "Manage Validator Nodes" section

You can skip API url, Post URL, Reward account
After registration and once your node synced the block (Blocks to head: 0), set your node to "active"

Stake Licenses for Rewards

To earn LICENSE rewards:

Go to https://splinterlands.com/dashboard/licenses
Click Activate and Stake Licenses

Congrat! Now your validator node is running and you are getting License block reward! 🎉

Keeping the Node Running

To keep the node running continuously:

1. Make sure your WSL instance stays running

   • WSL might shut down with some reason like a system restart

2. After a Windows restart:

   • Open WSL terminal
   • Navigate to your SPS-Validator directory
   • Check if the validator is running:

   ./run.sh logs

   • If not running, start it again:

   ./run.sh start all

3. Set Windows to auto-start Docker Desktop

   • This will ensure Docker is available after restarts
   • Open Docker Desktop > Settings > General > Start Docker Desktop when you log in

4. Consider using a WSL startup script to auto-start the validator

   • Create a startup script in your home directory:
     echo '#!/bin/bash
     cd ~/SPS-Validator
     ./run.sh start all' > ~/start-validator.sh
     chmod +x ~/start-validator.sh

• Add this to your Windows startup by creating a .vbs script:
• open notepad app on windows -> paste this

Set WshShell = CreateObject("WScript.Shell")
WshShell.Run "wsl -d Ubuntu -e /bin/bash -c ~/start-validator.sh", 0, True

Save this as a .vbs file and place it in your Windows Startup folder (Win+R, then type shell:startup)

Common Commands for Management

• ./run.sh stop: Stops all services
• ./run.sh start: Starts validator and database
• ./run.sh start all: Starts validator, database, and UI
• ./run.sh logs: Shows the validator logs
• ./run.sh rebuild_service validator: Rebuilds the validator to apply new environment variables
• ./run.sh snapshot: Creates a backup of your database

You just made the SPS chain stronger and more decentralized! 💪
